Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version
4.2 (133 items)
Limited Time SaleUS$14.34 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218170811 | Release Date | 2026/05/03 | List Price | US$9.56 | Model Number | 218170811 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

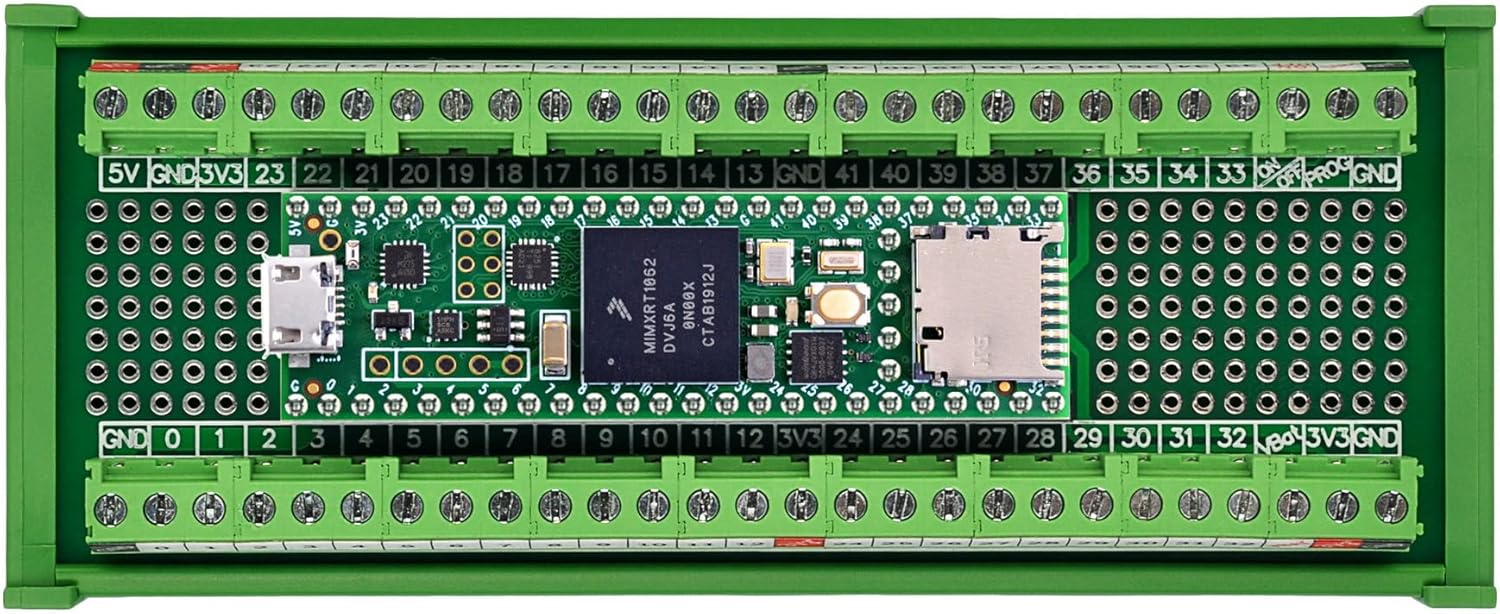

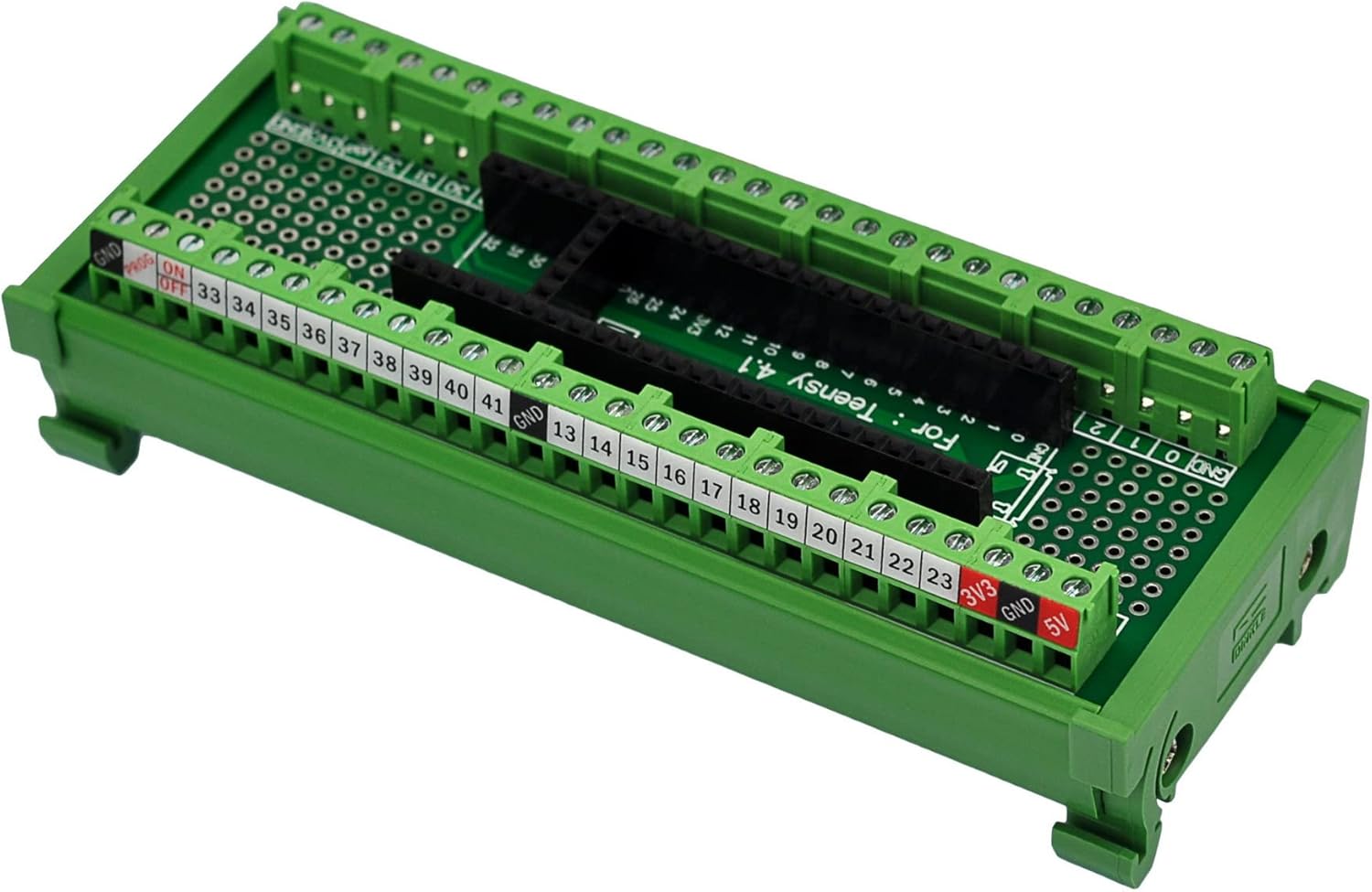

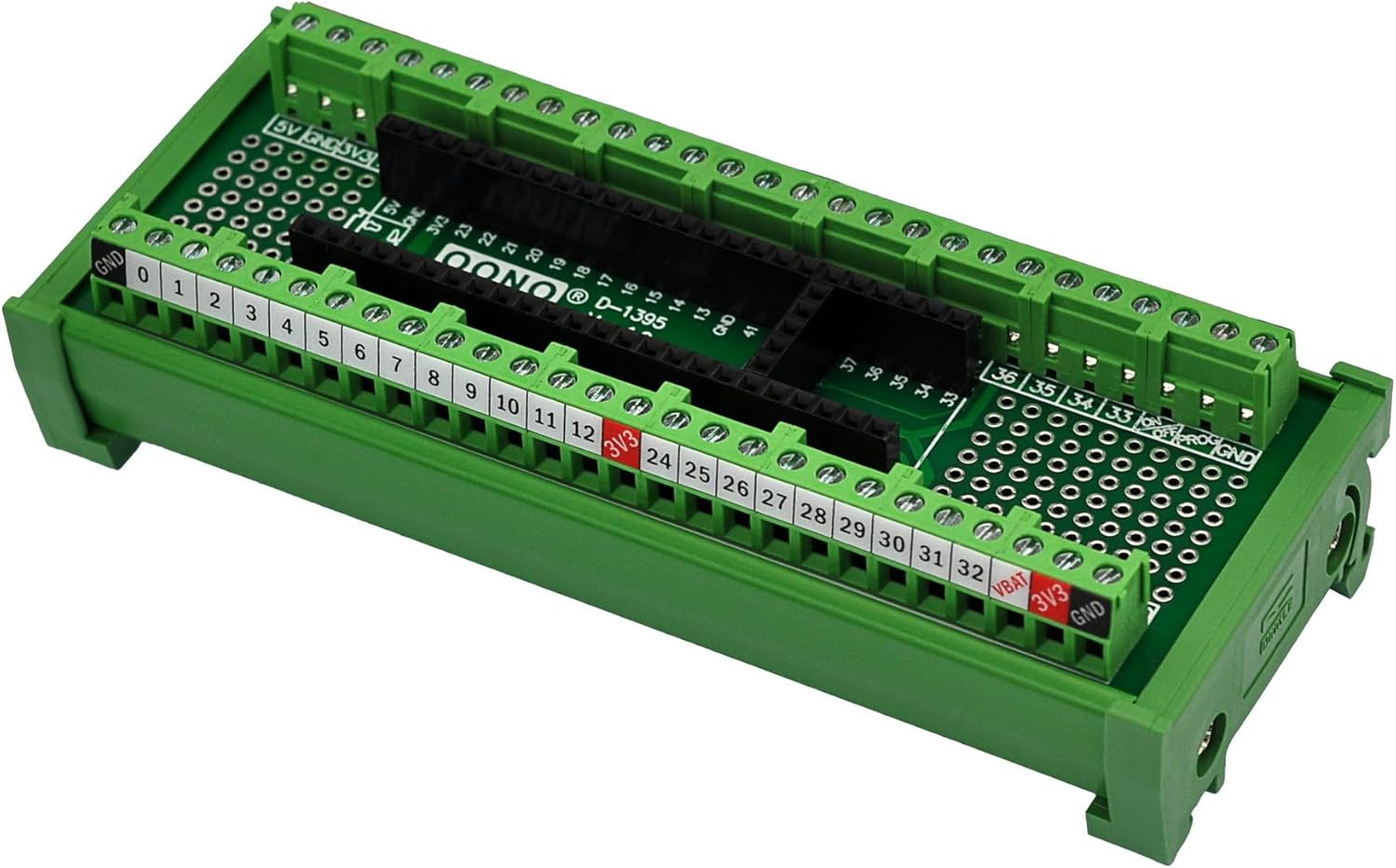

Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications. With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need. Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw. FR-4 fiberglass dual copper layers PCB. High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. Packing list: 1x Breakout board module, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
- Terminal Block Breakout Board Module for Teensy 4.1, DIN Rail Mount Version. With the breakout board, you can easily extend Teensy 4.1 projects to industrial control, home automation or other applications.
- With 112 DIY solder pads on board, pitch 2.54mm, hole 0.8mm, you can use these pads to install soldered some electronic components for you need.
- Terminal block: Pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.
- FR-4 fiberglass dual copper layers PCB. High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
- Packing list: 1x Breakout board module, 2x 24pin pitch 2.54mm/0.1" pin header, 1x 5pin pitch 2.54mm/0.1" pin header. Note: the item not include Teensy 4.1 board.
| Color | Green |
|---|---|
| Gauge | 16.0 |
| Model | D-1389 to D-1395 Series |
| Pitch | 3.81 Millimeters |
| Brand Name | OONO |
| Unit Count | 1.0 Count |
| Part Number | D-1389 to D-1395 Series |
| Manufacturer | CZH-LABS |
| Material Type | Nylon |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 13 Amps |
| Number Of Poles | 112 |
| Temperature Range | 105 Degrees Celsius |
| Number Of Contacts | 112 |
| Number of Positions | 112 |
| Upper Temperature Rating | 105 Degrees Celsius |
