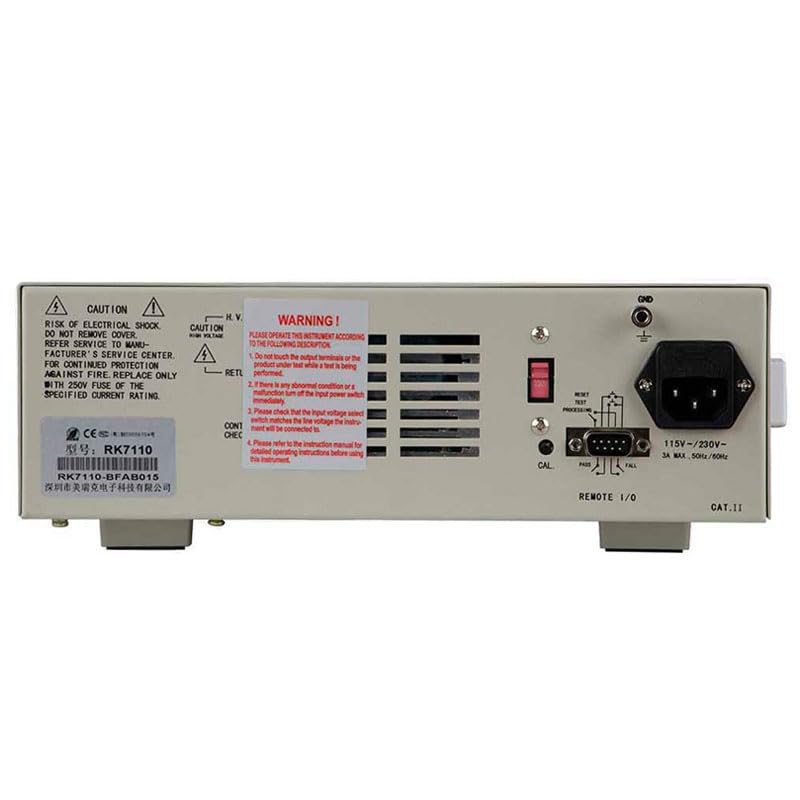

RK7110 Programmable Withstanding Voltage Tester Hi-Pot Tester Voltage AC 5kV Current 12mA Accuracy 2%

This series of program controlled voltage tester is a high performance safety tester using high-speed MCU and large-scale digital circuit design, its output voltage size, output voltage rise and fall. The frequency safety of the output voltage is controlled by the MCU, which can display the breakdown current and voltage value in real time, and has the software calibration function, which can intuitively, accurately and quickly test the electrical safety performance indicators such as the breakdown voltage and leakage current of various tested objects, and can be used as a high voltage source to test the performance of components and the whole machine.

• Output voltage：AC:0~5kV；Test accuracy：± (2% setpoint +5V)；Test current：AC 0.10~12.00mA；Test time：0.2~999.9s；Output frequency：50Hz/60Hz(optional)；Input characteristic：Single-phase 47~63Hz, 115V/230V AC±15%(optional)；Test alarm：Buzzer, LCD display "FAIL", indicator
• RK7110 Voltage :AC 0-5kV, current :0.1-12mA, accuracy :2%; Standard PLC interface, sound and light alarm
• The voltage rises according to the set time gradient, and the breakdown point can be analyzed.Current upper and lower limit setting.
• With 5 groups of memory group capacity, the test results are automatically saved
• With arc detection function (according to level 1-9)
