64 Inch Automatic Pneumatic Laminating Machine 110V Auto/Manual Laminator Machine Hot & Cold Lamination 1.38'' Max Thickness with Independent Cutters for Large Format Documents Laminating

Parameters: Product Name: Full Automatic Pneumatic Laminating Machine Max. Laminating Width: 63In (1600mm) Max. Laminating Thickness: 1.38In (35mm) Max. Laminating Speed: 10m/min Temperature Adjusting Range: 0 to 60℃/140℉ Material of Rollers: Silicone material of Rubber Roller Roller Lifting Way: Air cylinder Roller Heating Type: Within the Infrared Heating Preheating Time: 5-10min Running Method: Automatic/Manual (Foot Pedal) Net Weight: 146kg (321.84LB) Whole Size: about 77.95''x22.83''x53.54'' (198x58x136cm) Four Universal Casters with two Brake Foot Switch and Emergency Stop Button Note: Air compressor NOT included, the air compressor should prepared by yourself. Package included: (120106) 1set 110V 64" Full Automatic Pneumatic Laminating Machine Single-sided Roll Laminator(air compressor not included) Features: 1. Compact Control Panel: An intuitive control panel with a digital display allows for easy mode switching, parameter adjustment, and speed control, improving both operation and efficiency. 2. Organized Back Panel: The rear panel consolidates the power switch, connectors, and fuse holders for easy setup and maintenance, simplifying power and accessory management. 3. Adjustable Film Stripping Rod: The film stripping rod features two storage positions: a low position for use and a high position for storage. 4. Secure Support Rods: The support rods have adjustable tensioning knobs for easy installation and reliable fixation. 5. Integrated Cutting System: Four adjustable cutter sets are included, allowing for quick and accurate trimming of white edges after lamination. 6. Real-Time Pressure Gauge: An air pressure gauge provides a clear, real-time display to prevent over or under-pressure. 7. Dual-Function Foot Pedal: A innovative foot pedal controls both the roller movement and machine operation.

• Wide & Heavy-Duty Laminating Capacity: Professional 64-inch (1630mm) wide full automatic pneumatic laminating machine can laminate 1.38 inches thickness and handle extra-large materials like maps, blueprints and posters with ease. Achieve vibrant, waterproof, and colorfast results for a professional finish in advertising, printing and photography.
• Dual Control Modes & Hands-Free Operation: Switch easily between full automation for high-volume jobs and manual foot-pedal control for precision work. The dual-function foot pedal allows you to control both the roller pressure and laminator operation, freeing your hands and well assisting the operator in laminating the drawings.
• Integrated Cutting System & Adjustable Tools: Equipped with 4 freely adjustable cutter sets for precise trimming of white edges and unwanted portions right. This integrated laminating-and-cutting process save time and labor. Additional, the dual-position film stripping rod and tension-adjustable support rods further enhance convenience and stability.

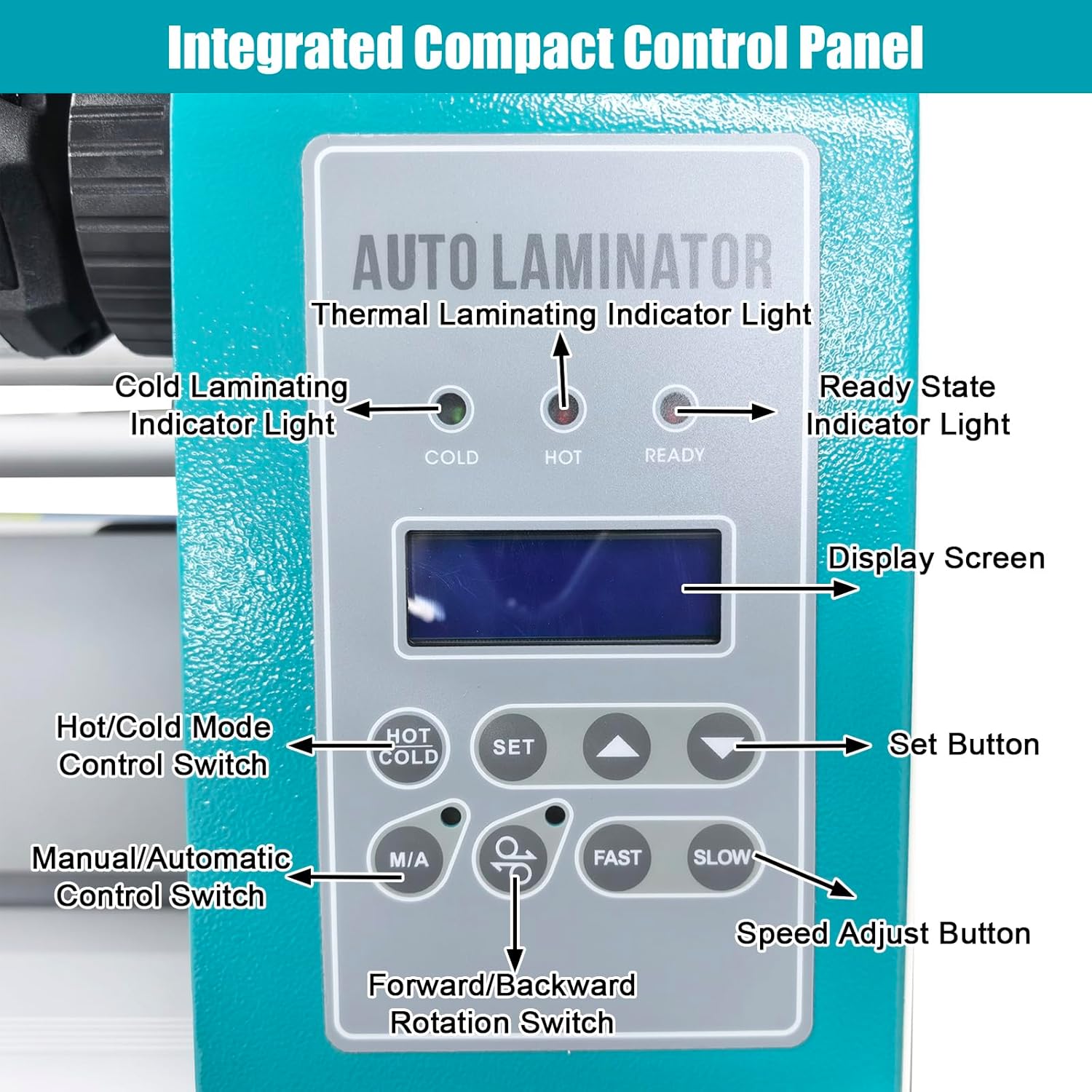

• Intelligent Control Panel & Real-Time Monitoring: Operate with precision using the digital display control panel. Easily switch between cold and thermal modes (0-60°C), adjust laminating speed up to 10m/min, and monitor all parameters at a glance. The integrated air pressure gauge provides real-time monitoring to prevent overpressure and ensure smooth operation.
• Safety Design: The laminating machine features dual emergency stop buttons on both left and right sides for instant shutdown from any position. Also equipped with an anti-static rope for electrostatic dissipation, thereby effectively remove the static electricity of the film, providing the safety.
• Robust Construction & Efficient Performance: Built for a professional laminating, this laminator features a durable silicone roller and a powerful air cylinder for even, bubble-free pressure. With efficient infrared heating for a quick 5-10 minute preheat, this laminator is both powerful and stable, ensuring reliable performance for years to come.
