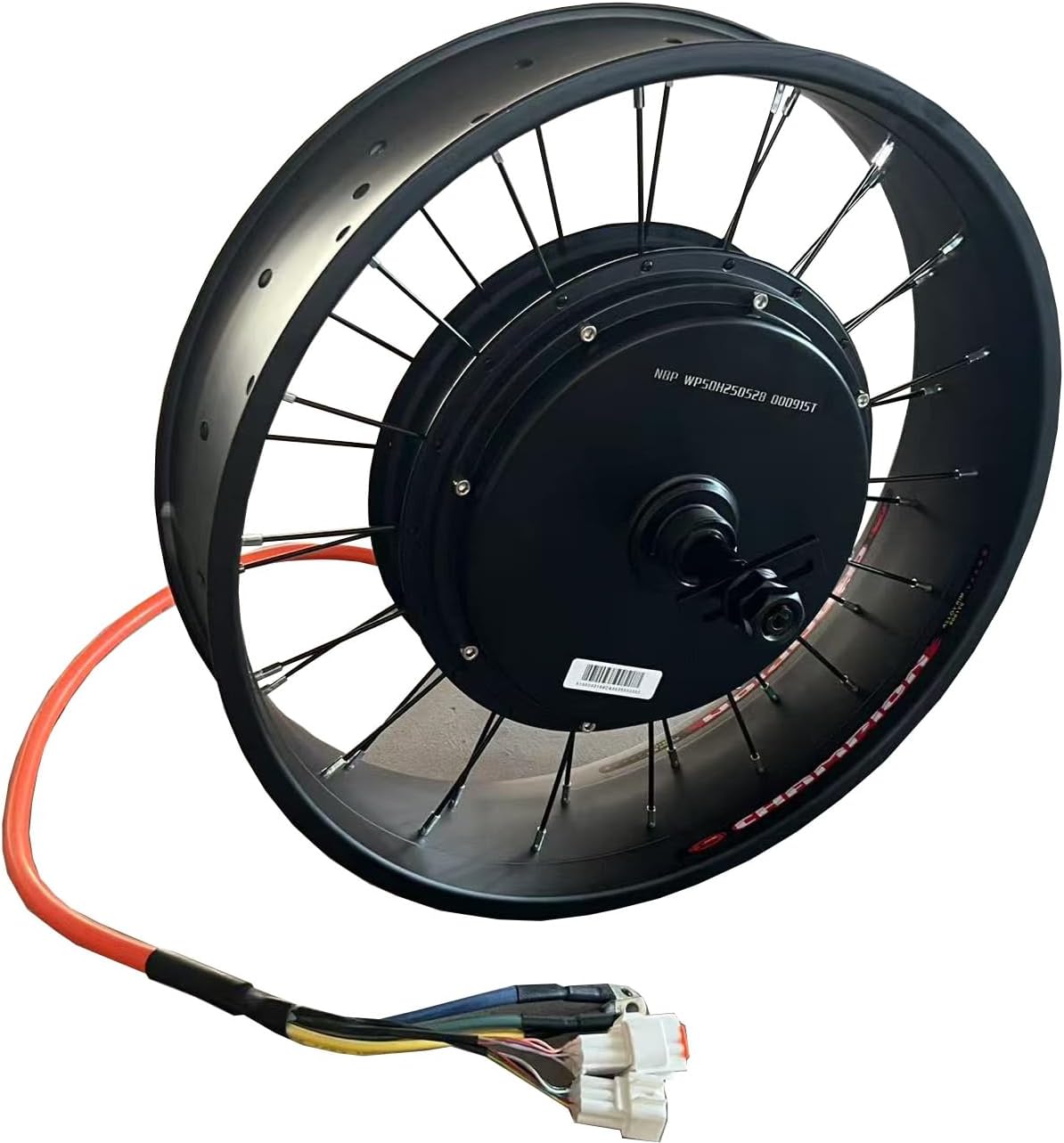

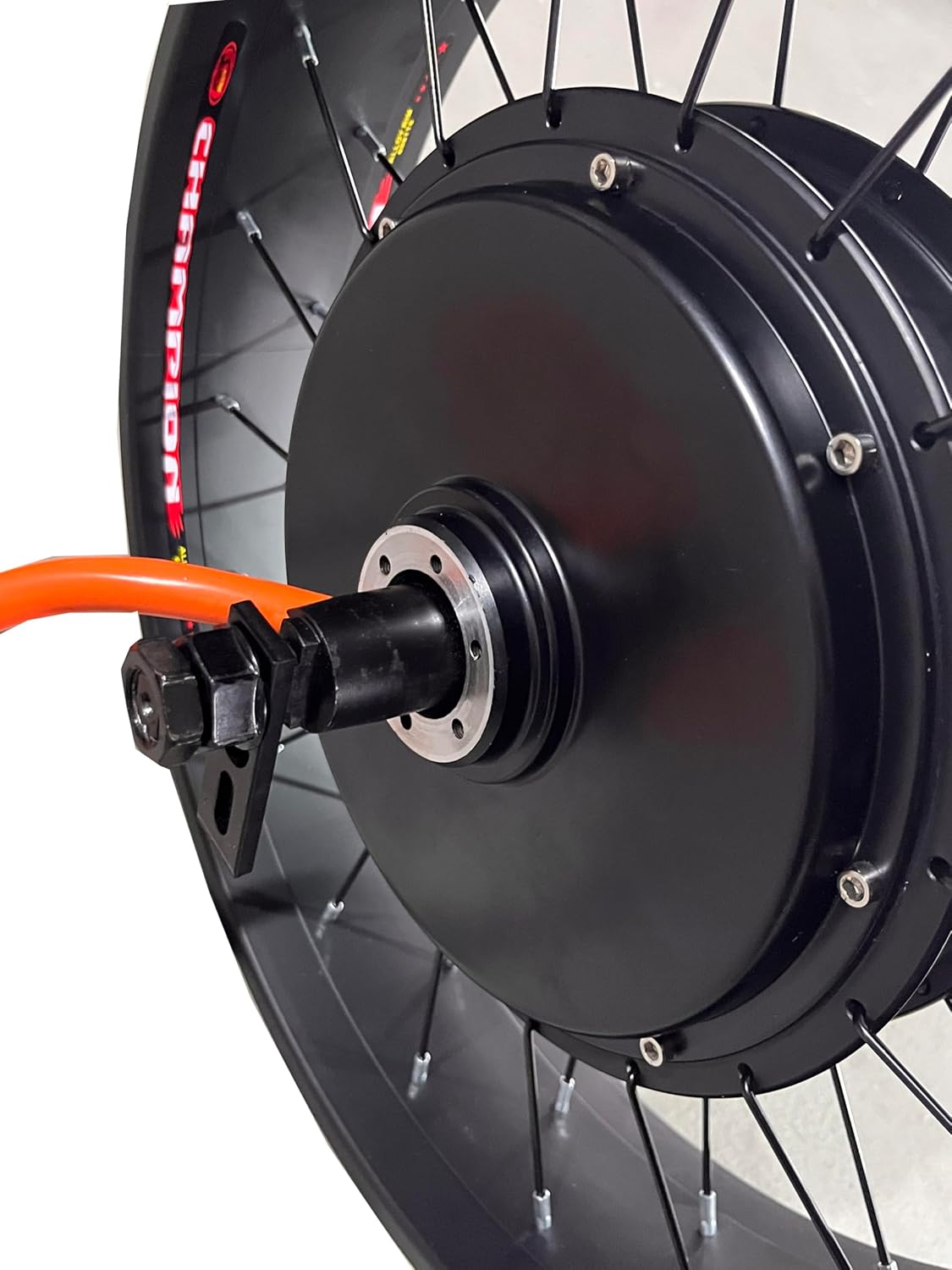

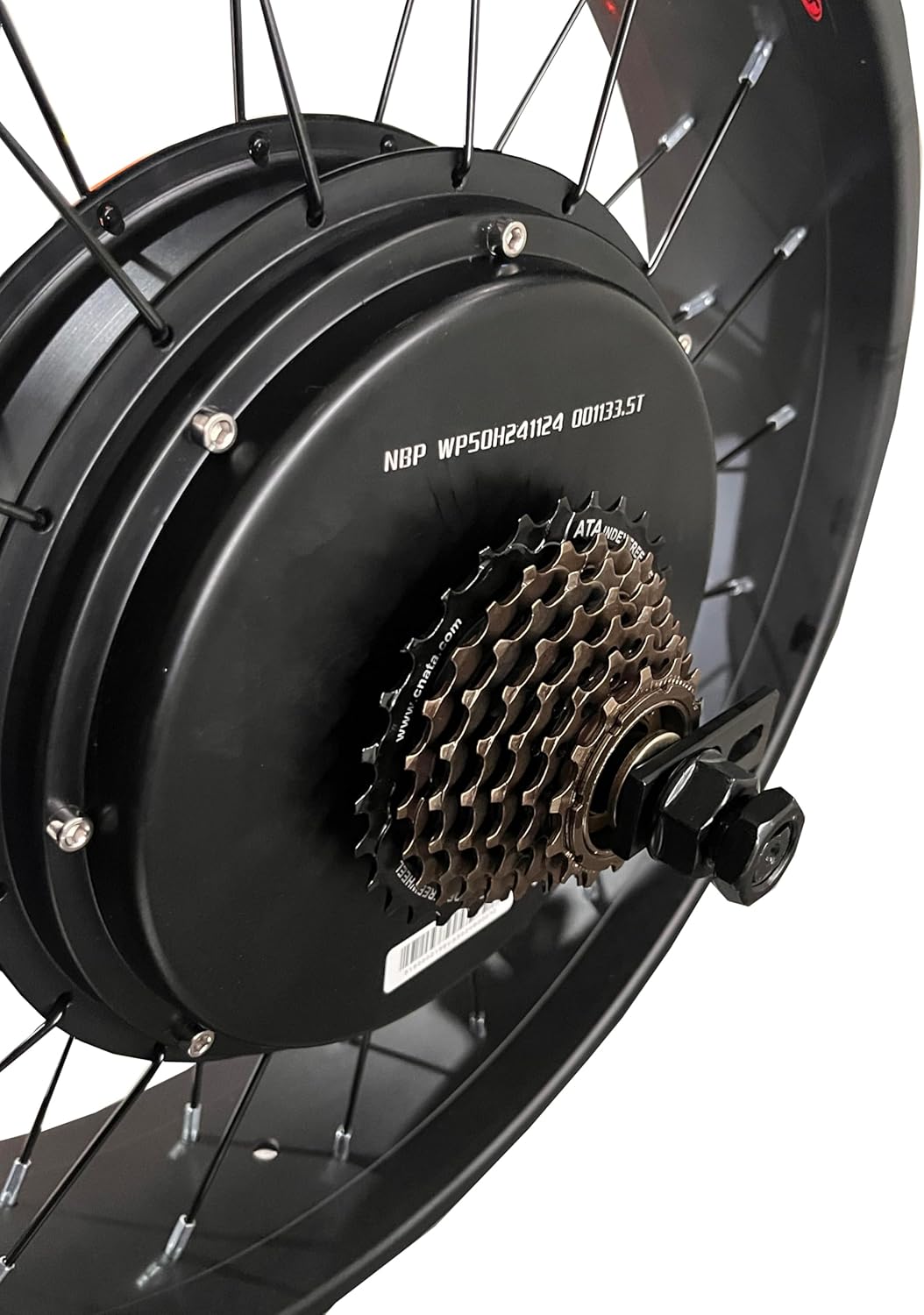

20x4.0 QS205 50H 190mm Dropout 3T/3.5T/4T/5T 72V QS 5000w Fat Bike Brushless Hub Motor Wheel for Electric Bicycle Fat Ebike 60-100kph
4.4 (82 items)
Limited Time SaleUS$359.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 214499852 | Release Date | 2026/04/12 | List Price | US$239.60 | Model Number | 214499852 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
QS 190mm dropout 5000W Motor wheel 1. Motor Type: BLDC In-Wheel Hub Motor 2. Motor Design: Double Axle with Rim(integrated) 3. Matched Tire: 20*4.0 4. PCD: 6*44mm 5. Stator: Aluminum Core 6. Rated Power: 5000W 7. Peak Power: 10000W in few seconds 8. Rated Voltage: 72V 9. Speed:70-120KMh 3.5T: 840RPM 4T: 770RPM 5T: 650RPM 10. Drop-outs: 190mm 11. Max Torque: 3.5T: 180N.M 4T: 200N.M 5T: 220N.M 12. Max Efficiency: approx 91% 13. Suggest Peak Phase Current: N/A 14. Thermic Probe: KTY83/122(as default) 15. Working Temperature: 70-120℃, peak 150℃ 16. Brake Type: Disc Brake 17. Hall Sensor: Dual hall set with waterproof connector 18. Phase Wire:2*5mm²Cross 19. Hall Sensor Phasing Angle: 120 degree 20. Waterproof Grade: IP65
- QS 205 5000W Fat Motor
- This motorwheel need bike Rear fork inner distance reach 190mm
- 190mm dropout QS 5000W Motorwheel
- 20*4.0 100mm width Fat rim (if need other rim ,please contact us ，we also can customize it ;
- For 5000W Ebike bicycle
| Color | 4T |
|---|---|
| Rim Size | 20 Inches |
| Bike Type | Electric Bike |
| Rim Width | 100 Millimeters |
| Brand Name | NB POWER |
| Wheel Size | 20 Inches |
| Brake Style | disc brake |
| Manufacturer | niubo power |
| Material Type | Aluminum |
| Wheel Backspacing | 190 Millimeters |
| Included Components | motorwheel |
| Warranty Description | 1 year |
